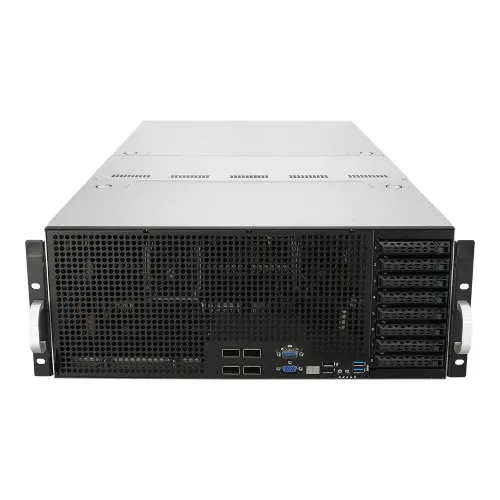

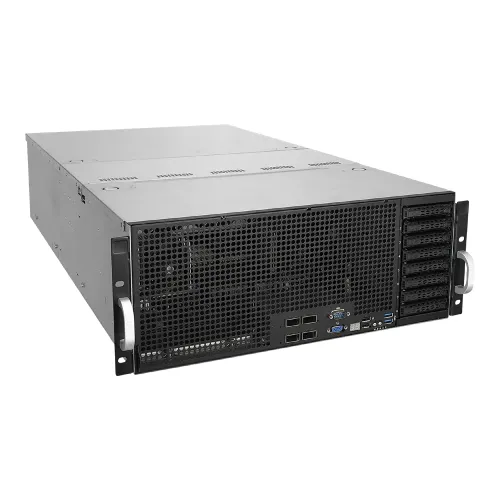

Asus ESC8000 G4 2nd Gen Intel Xeon Scalable GPU Server

Asus ESC8000 G4 2nd Gen Intel Xeon Scalable GPU Server

The ASUS ESC8000 G4—a high-density 4U GPU server engineered to meet the rigorous demands of AI, HPC, and VDI applications. Powered by the latest 2nd Gen Intel Xeon Scalable processors, this server offers unparalleled performance, scalability, and efficiency. Exclusively available at Best Computer your trusted partner for cutting-edge computing solutions.

Unmatched Computing Power

The ASUS ESC8000 G4 is designed to handle the most intensive workloads. With support for up to eight dual-slot NVIDIA® GPUs, including Quadro® and Tesla® series, it delivers exceptional parallel processing capabilities. This makes it ideal for deep learning, scientific simulations, and complex data analytics.

Equipped with dual Intel Xeon Scalable processors, the ASUS ESC8000 provides up to 56 cores and 112 threads, ensuring seamless multitasking and rapid data processing. The server also supports up to 3TB of DDR4 2666MHz memory across 24 DIMM slots, catering to memory-intensive applications.

Advanced GPU Architecture

The ESC8000 G4’s architecture is optimized for high-density GPU deployment. Its eight PCIe Gen3 x16 slots accommodate full-height, full-length GPUs, enabling massive parallel computing power. The server’s design supports both active and passive thermal modules, ensuring compatibility with a wide range of GPU models.

This flexibility allows organizations to tailor the server to their specific computational needs, whether it’s for AI model training, real-time data processing, or complex simulations.

Patented Adaptable Topology Design

ASUS’s patented Adaptable Topology design offers unparalleled flexibility in system configuration. Users can easily switch between single or dual root complex topologies via the intuitive web-based GUI of the ASUS ASMB9-iKVM server management solution. This feature eliminates the need for hardware reconfiguration or cable rerouting, simplifying system management and reducing downtime.

Scalable Storage and Expansion

The ESC8000 G4 is built to scale with your organization’s growing data needs. It features multiple interface types for flexible storage configurations, including dual PCIe or SATA M.2, and port-to-port dual OCuLink with Intel VROC technology for two hot-swappable 2.5″ NVMe SSDs. Additionally, it supports up to eight 2.5” SATA 6Gbps HDDs or eight 2.5” SAS 12Gbps HDDs with an optional HBA card.

For networking, the server includes two PCIe Gen3 x16 slots for high-speed networking cards and one internal PCIe Gen3 x8 slot for an HBA/RAID card, ensuring high-density, parallel computing power.

Comprehensive IT Infrastructure Management

Managing complex server environments is simplified with the ESC8000 G4’s embedded ASMB9-iKVM module and ASUS Control Center software. This combination provides comprehensive in-band and out-of-band management, allowing IT administrators to monitor and control the server remotely. Features include real-time hardware monitoring, BIOS updates, and remote troubleshooting, ensuring maximum uptime and efficiency.

Efficient Cooling and Energy Management

Handling extreme workloads requires robust cooling solutions. The ESC8000 G4 is equipped with hot-swappable, redundant fans and dedicated air tunnels for the CPU, GPUs, and DIMMs. Ten fans for the GPUs—five primary and five backup—plus two coolers for the CPU ensure nonstop cooling performance for continuous server operation.

ASUS-exclusive thermal radar technology with ambient sensors placed on the CPUs, GPUs, and DIMMs provides internal and external temperature monitoring. This enables dynamic fan curve adjustment, lowering fan power consumption by up to 20% and reducing total cost of ownership (TCO), making it ideal for data centers with extreme workloads.

Simplified Maintenance and Management

The ESC8000 G4 is designed with maintenance in mind. Its ingenious placement design allows IT staff to swap key components with ease. Three easy-access covers can be opened without tools, enabling maintenance on specific components without removing the server fully from the rack. A visible Q-Code/port 80 LED display provides simple monitoring of the entire boot process, from power-on through loading of the operating system. Additionally, the server provides instant system information during initialization and any unusual diagnostic results for more efficient IT operation and easy troubleshooting.

High-Speed Networking Capabilities

The ASUS ESC8000 supports 100Gbps Intel® Dual Embedded Omni-Path Architecture, facilitating high-speed data transfer and efficient cluster management. This feature is crucial for applications requiring rapid data movement, such as real-time analytics and high-frequency trading.

Why Choose Best Computer Hub Ltd?

At Best Computer Hub Ltd, we are committed to providing top-of-the-line computing solutions tailored to your organization’s needs. Our team of experts ensures seamless integration, support, and maintenance of your IT infrastructure. By choosing us, you gain access to:

• Expert Consultation: Our specialists assess your requirements to recommend the best configurations.

• Reliable Support: We offer ongoing support to ensure your systems run smoothly.

• Competitive Pricing: Get the best value for your investment with our competitive pricing models.

• Authorized ASUS Partner: As an authorized ASUS ESC8000 partner, we guarantee genuine products and services.

Ideal Use Cases

The ASUS ESC8000 G4 is perfect for organizations engaged in:

• Artificial Intelligence and Machine Learning: Accelerate model training and inference with high-density GPU support.

• High-Performance Computing (HPC): Handle complex simulations and computations efficiently.

• Virtual Desktop Infrastructure (VDI): Support multiple virtual desktops with robust processing power.

• Big Data Analytics: Process and analyze vast datasets swiftly.

Final Summary

The ASUS ESC8000 G4 stands as a testament to cutting-edge server technology, offering unmatched performance, scalability, and efficiency. Whether you’re delving into AI research, managing complex simulations, or running extensive data analytics, this server is your ideal companion. Partner with Best Computer Hub Ltd to harness the full potential of your IT infrastructure.
