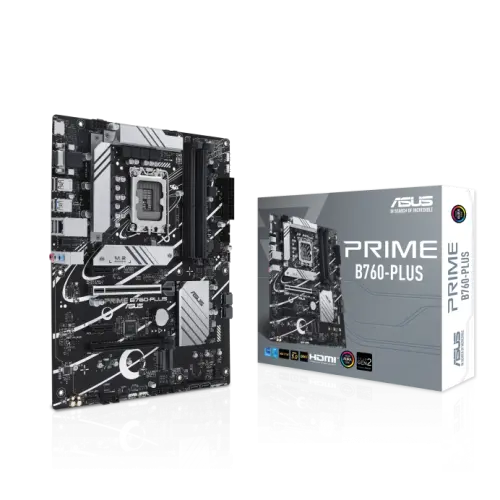

ASUS PRIME B760-PLUS ATX Motherboard
ASUS PRIME B760-PLUS ATX Motherboard - Image 2
ASUS PRIME B760-PLUS ATX Motherboard - Image 3
ASUS PRIME B760-PLUS ATX Motherboard - Image 4
ASUS PRIME B760-PLUS ATX Motherboard
, , , , , ,

ASUS PRIME B760-PLUS ATX Motherboard

Asus
Availability:

In stock
Add to wishlist
Compare

Short Description

  • Model: PRIME B760-PLUS
  • Supported CPU: 14th/12th/13th Gen Intel Processors (LGA1700)
  • Supported RAM: 4 x DIMM, Max. 192GB, DDR5 7200+(OC)
  • Graphics Output: 1x DisplayPort, 1x VGA port, 1x HDMI
  • Features: 3x M.2 slot, Realtek 2.5Gb Ethernet

23,000৳  25,300৳

In stock

EMI starts at 849৳  - View Banks EMI Plans

ASUS PRIME B760-PLUS ATX Motherboard: Powerful Performance for 14th, 13th & 12th Gen Intel Processors

The ASUS PRIME B760-PLUS ATX motherboard is designed for superior performance, supporting 14th, 13th, and 12th Gen Intel Core, Pentium Gold, and Celeron processors through the LGA 1700 socket. With four dual-channel RAM slots and three M.2 slots, this motherboard enables you to maximize the power of Intel processors for gaming, content creation, and high-performance computing. Additionally, the four SATA III ports allow users to configure extensive storage arrays, perfect for handling large file libraries. The two PCIe x16 slots and one PCIe x1 slot provide ample room for high-end graphics cards and expansion cards, enhancing your system’s capabilities.

Features:

Optimized Power Delivery

Engineered for gamers and power users, the 12+1+1 dual rail power system and 8+8 pin power connectors ensure stable and efficient power delivery with Core Boost technology. This boosts the performance of Intel multi-core processors for seamless multitasking and gaming. Features like Digital Power Design, Overvoltage Protection, Load-Line Calibration, and Supplemental PCIe Power Connectors work together to optimize electrical management and maintain system stability under heavy loads.

Advanced Thermal Management

The ASUS PRIME B760-PLUS offers an enhanced thermal solution with an Extended Heatsink Design, M.2 Shield Frozr, and AI Cooling technologies. These cooling features keep your components at optimal temperatures, ensuring reliability even during high-performance tasks like gaming or rendering. System Cooling and Fan Control provide precise thermal regulation to prevent overheating during intense workloads.

Durable Design for Long-Lasting Protection

Built for durability, the motherboard features a high-quality PCB with 2oz thickened copper for improved heat dissipation and circuit reliability, making it ideal for overclocking. Double ESD protection around the mounting holes protects against static discharge, ensuring long-term durability. The ASUS PRIME B760-PLUS motherboard is backed by a 3-year warranty, guaranteeing performance and reliability for your system.

What is the price of  Asus PRIME B760-PLUS Motherboard in Bangladesh?

Lastly, You can buy this product from Best Computer Hub Ltd. The latest price of Asus PRIME B760-PLUS Motherboard in Bangladesh is 23,000৳.

So, Order Online Or Visit your Nearest Best Computer Hub Shop to get yours at lowest price.

SKU: Asus-Intel-Motherboard-0018 Categories: , , , , , , Tags: , , , , ,
Basic Information
Supported CPU Intel Socket LGA1700 for 14th, 13th Gen Intel Core & 12th Gen Intel Core, Pentium Gold and Celeron
Processors
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset Intel B760 Chipset
BIOS 128 Mb Flash ROM, UEFI AMI BIOS
Form Factor ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC*
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– Supports up to 24-Bit/192 kHz playback
Audio Features
– Audio Shielding
– Premium audio capacitors
– Dedicated audio PCB layers
Expansion Slots
PCI Intel 13th & 12th Gen Processors
1 x PCIe 5.0 x16 slot
Intel B760 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
2 x PCIe 3.0 x1 slots
Memory
Type DDR5
Slots 4 x DIMM
Supported Memory DDR5 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
OptiMem
Maximum Memory 192GB
Graphics
Graphics 1 x DisplayPort (Supports max. 4K@60Hz as specified in DisplayPort 1.4.)
1 x VGA port
1 x HDMI port (Supports 4K@60Hz as specified in HDMI 2.1.)
Connector & Ports
HDMI 1x HDMI
Display Port (s) 1x DisplayPort
VGA (s) 1 x VGA port
USB (s) Rear USB (Total 6 ports)
1 x USB 3.2 Gen 2×2 port (1 x USB Type-C)
2 x USB 3.2 Gen 2 ports (2 x Type-A)
1 x USB 3.2 Gen 1 port (1 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 7 ports)
1 x USB 3.2 Gen 1 connector (supports USB Type-C)
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
LAN Port (s) 1 x Realtek 2.5Gb Ethernet
Wireless Communication module Vertical M.2 slot only (Key E, CNVi & PCIe)*
* Wi-Fi module is sold separately.
Supported Storage Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
Intel 13th & 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Intel B760 Chipset
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode)
4 x SATA 6Gb/s ports
RAID Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.
Audio 3 x Audio jacks
Internal I/O Ports Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 connector (supports USB Type-C)
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thunderbolt (USB4) header
TPM (Trusted Platform Module ) 1 x SPI TPM header (14-1pin)
Others
Special Features ASUS 5X PROTECTION III
– DIGI+ VRM
– LANGuard
– Overvoltage Protection
– SafeSlot Core+
– Stainless-Steel Back I/O
ASUS Q-Design
– Q-DIMM
– Q-LED Core
– Q-Slot
ASUS Thermal Solution
– M.2 heatsink
– VRM heatsink design
ASUS EZ DIY
– ProCool
Aura Sync
– Aura RGB header
– Addressable Gen 2 headers
Bundled Software ASUS Exclusive Software
Armoury Crate
– Aura Creator
– Aura Sync
– Fan Xpert 2+
– Power Saving
AI Suite 3
– DIGI+ VRM
– PC Cleaner
ASUS CPU-Z
Norton 360 Deluxe (60 Days Free Trial)
WinRAR
UEFI BIOS
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
Warranty Information
Manufacturing Warranty 3 years
