Short Description

  • Model: PRIME N100I-D D4
  • Supported CPU: Onboard Intel Processor N100
  • Supported Memory: 1 x SO-DIMM, Max. 16GB, DDR4
  • Graphics Output: 1 x HDMI, 1 x VGA port, 1 x DisplayPort
  • Features: 1 x Realtek 1Gb Ethernet

12,900৳  14,190৳

In stock

EMI starts at 476৳  - View Banks EMI Plans

Asus PRIME N100I-D D4 Mini-ITX Motherboard: Compact Power and Silent Performance

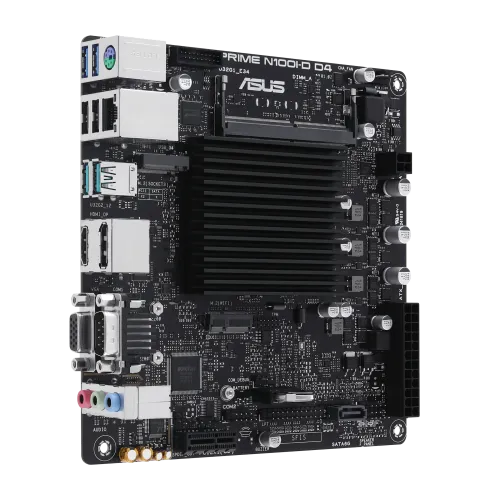

The Asus PRIME N100I-D D4 Mini-ITX Motherboard is a fanless, low-power solution built to support the Intel Processor N100, offering a versatile, compact platform for a range of computing needs. Designed for efficiency, this motherboard provides essential features and connectivity options while maintaining silent operation, making it ideal for compact systems, home servers, or industrial PCs.

This motherboard is equipped with a PCIe 3.0 x1 slot for expansion, and it supports multiple display outputs, including DisplayPort, HDMI, and VGA, providing flexibility for different monitor setups. High-speed connectivity is ensured with a USB 3.2 Gen 2 port at the rear and USB 3.2 Gen 1 ports at the front, along with a 1Gb Ethernet port for reliable wired networking.

For storage, the 16Gbps M.2 slot enables ultrafast SSD performance, while SATA 6 Gbps ports support traditional storage devices, offering a balanced mix of speed and capacity. The motherboard also supports legacy applications with its M.2 Wi-Fi slot and LPT and COM ports, making it suitable for industrial environments.

The fanless cooling system, featuring a built-in CPU heatsink, ensures efficient heat dissipation and silent operation, perfect for noise-sensitive applications. Additionally, the COM debug header simplifies troubleshooting, enhancing system maintenance and serviceability.

As part of the ASUS Prime series, this motherboard boasts a robust power design, advanced cooling options, and user-friendly software for optimizing performance. It provides a reliable and flexible platform for PC builders and DIY enthusiasts looking to create efficient, high-performance systems.

With a 3-year warranty, the Asus PRIME N100I-D D4 Motherboard is a dependable choice for small form factor builds, offering a perfect balance of performance, connectivity, and silent operation.

What is the price of  Asus PRIME N100I-D D4 Motherboard in Bangladesh?

Lastly, You can buy this product from Best Computer Hub Ltd. The latest price of Asus PRIME N100I-D D4 Motherboard in Bangladesh is 12,900৳.

So, Order Online Or Visit your Nearest Best Computer Hub Shop to get yours at lowest price.

SKU: Asus-Intel-Motherboard-0009 Categories: , , , , , , Tags: ,
Basic Information
Supported CPU Onboard Intel Processor N100
Supports Intel Turbo Boost Technology 2.0
BIOS 128 Mb Flash ROM, UEFI AMI BIOS
Form Factor Mini-ITX Form Factor
6.7 inch x 6.7 inch (17cm x 17cm)
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC*
– Supports: Jack-detection, Multi-Recording, Front Panel Jack-retasking
– Supports up to 24-Bit/192 kHz playback”
Audio Features
– Audio Shielding
– Premium audio capacitors
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Expansion Slots
PCI 1 x PCIe 3.0 x1 slot
Memory
Type DDR4
Slots 1 x SO-DIMM
Supported Memory 3200/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
* We recommend that you use 16GB or less memory module.
Maximum Memory Max. 16GB
Graphics
Graphics 1 x DisplayPort**
1 x VGA port
1 x HDMITM port***
**Supports max. 4K@60Hz as specified in DisplayPort 1.4.
***Supports 4K@60Hz as specified in HDMITM 2.1.
Connector & Ports
HDMI 1 x HDMI port
Display Port (s) 1 x DisplayPort
VGA (s) 1 x VGA port
USB (s) Rear USB (Total 6 ports)
2 x USB 3.2 Gen 2 (10G) ports (2 x Type-A)
2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A)*
2 x USB 2.0 ports (2 x Type-A）
Front USB (Total 4 ports)
1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports*
1 x USB 2.0 header supports 2 additional USB 2.0 ports
* U32G1_E1 port, U32G1_E2 port, U32G1_E3 port and U32G1_E4 port share the bandwidth.
LAN Port (s) 1 x Realtek 1Gb Ethernet
ASUS LANGuard
Wireless Communication module M.2 slot only (Key E, CNVi & PCIe)*
* Wi-Fi module is sold separately.
Supported Storage Total supports 1 x M.2 slot and 1 x SATA 6Gb/s port
1 x M.2 Socket 3 with M key, type 2260/2280 (supports PCIe 3.0 x 2 mode)
1 x SATA 6Gb/s port
Audio 3 x Audio jacks
Internal I/O Ports Internal I/O Connectors
Fan and cooling related
1 x 4-pin Chassis Fan header
Power related
1 x 24-pin Main Power connector
1 x 4-pin +12V Power connector
Storage related
1 x M.2 slot (Key M)
1 x SATA 6Gb/s port
USB
1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
1 x USB 2.0 header supports 2 additional USB 2.0 ports
Miscellaneous
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x M.2 slot (Key E)
1 x Chassis Intrude header
1 x LPT header
1 x S/PDIF out header
1 x SPI TPM header (14-1pin)
1 x Speaker Header
1 x System Panel connector
Others
Special Features Proven Quality
– ESD Guards
– LANGuard
– Overvoltage Protection
– Stainless-Steel Back I/O
ASUS Q-Design
– Q-LED Core
ASUS Thermal Solution
– CPU heatsink design
Bundled Software ASUS Exclusive Software
ASUS CPU-Z
Norton 360 Deluxe (60 Days Free Trial)
WinRAR
UEFI BIOS
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
Warranty Information
Manufacturing Warranty 3 years warranty
