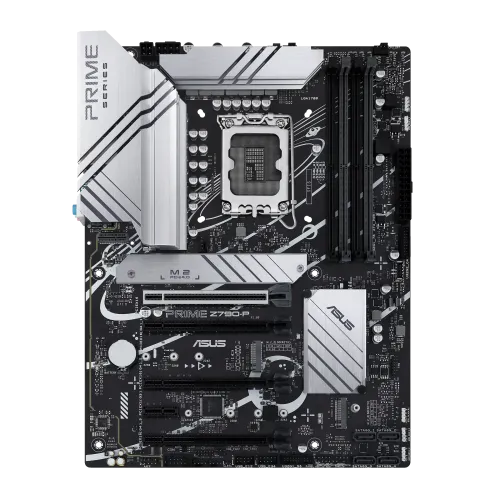

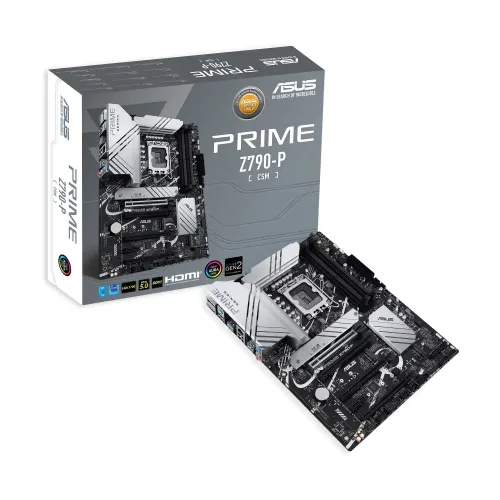

ASUS PRIME Z790-P-CSM ATX Motherboard
ASUS PRIME Z790-P-CSM ATX Motherboard - Image 2
ASUS PRIME Z790-P-CSM ATX Motherboard - Image 3
ASUS PRIME Z790-P-CSM ATX Motherboard - Image 4
ASUS PRIME Z790-P-CSM ATX Motherboard
, , , , , ,

ASUS PRIME Z790-P-CSM ATX Motherboard

Asus
Availability:

In stock
Add to wishlist
Compare

Short Description

  • Model: PRIME Z790-P-CSM
  • Supported CPU: 14th, 13th Gen & 12th Gen Processors (LGA1700)
  • Supported RAM: 4 x DIMM, Max. 128GB, DDR5 7200+(OC)
  • Graphics Output: 1 x DisplayPort, 1 x HDMI
  • Features: Realtek 2.5Gb Ethernet

34,400৳  37,950৳

In stock

EMI starts at 1,270৳  - View Banks EMI Plans

ASUS PRIME Z790-P-CSM ATX Motherboard: Power, Performance, and Versatility

The ASUS PRIME Z790-P-CSM ATX Motherboard is designed to deliver top-tier performance with its LGA 1700 socket and Z790 chipset, making it compatible with Intel 14th, 13th, and 12th Gen Core, Pentium Gold, and Celeron Processors. Perfect for PC enthusiasts and DIY builders, this motherboard offers intuitive performance optimization through advanced software and firmware.

Equipped with four DDR5 Dual-Channel RAM slots, the PRIME Z790-P-CSM supports up to 128GB of memory, ensuring smooth multitasking and the ability to handle resource-intensive tasks such as photo editing and video rendering. Its robust storage capabilities include four SATA III and three M.2 storage interfaces, allowing you to expand your storage for gaming or creative projects.

For powerful graphics performance, the PCIe 5.0 x16 slot supports the latest high-end GPUs, while three PCIe 4.0 x16 (in x4 mode) and one PCIe 3.0 x1 slot provide additional expansion options for various utility cards.

The motherboard’s connectivity options include a wide range of USB ports, including USB 2.0, 3.2 Gen 1, Gen 2, and Gen 2×2, ensuring seamless compatibility with both low-powered peripherals and high-performance external devices like storage arrays.

With a 3-year warranty, the ASUS PRIME Z790-P-CSM Motherboard is a future-ready solution for builders looking for reliability and cutting-edge technology in their custom rigs.

What is the price of  Asus PRIME Z790-P-CSM Motherboard in Bangladesh?

Lastly, You can buy this product from Best Computer Hub Ltd. The latest price of Asus PRIME Z790-P-CSM Motherboard in Bangladesh is 34,500৳.

So, Order Online Or Visit your Nearest Best Computer Hub Shop to get yours at lowest price.

SKU: Asus-Intel-Motherboard-0022 Categories: , , , , , , Tags: , , ,
Basic Information
Supported CPU Intel Socket LGA1700 for 14th Gen, 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset Intel Z790 Chipset
BIOS 192 (128+64) Mb Flash ROM, UEFI AMI BIOS
Form Factor ATX Form Factor
12 inch x 9.2 inch ( 30.5 cm x 23.4 cm )
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC*
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– Supports up to 24-Bit/192 kHz playback
Audio Features
– Audio Shielding
– Premium audio capacitors
– Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Expansion Slots
PCI Intel 13th & 12th Gen Processors
1 x PCIe 5.0 x16 slot
Intel Z790 Chipset
3 x PCIe 4.0 x16 slots (support x4 mode)
1 x PCIe 3.0 x1 slot
Memory
Type DDR5
Slots 4 x DIMM
Supported Memory 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
OptiMem II
Maximum Memory 128GB
Graphics
Graphics 1 x DisplayPort**
1 x HDMI® port***
** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI 2.1.
Connector & Ports
HDMI 1 x HDMI
Display Port (s) 1 x DisplayPort
USB (s) Rear USB (Total 8 ports)
1 x USB 3.2 Gen 2×2 port (1 x USB Type-C)
1 x USB 3.2 Gen 2 port (1 x Type-A)
2 x USB 3.2 Gen 1 ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 9 ports)
1 x USB 3.2 Gen 2 connector (supports USB Type-C)
2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
LAN Port (s) 1 x Realtek 2.5Gb Ethernet
Wireless Communication module Vertical M.2 slot only (Key E, CNVi & PCIe)*
*Wi-Fi module is sold separately.
Supported Storage Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel 13th & 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
Intel Z790 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)
4 x SATA 6Gb/s ports
RAID Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.
Audio 3 x audio jacks
Internal I/O Ports Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
Storage related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 2 connector (supports USB Type-C)
2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
2 x Aura RGB headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x 20-5pin System Panel header
1 x Thunderbolt (USB4) Header
TPM (Trusted Platform Module ) 1 x SPI TPM header (14-1pin)
Others
Special Features ASUS 5X PROTECTION III
– DIGI+ VRM (- Digital power design with DrMOS)
– LANGuard
– Overvoltage Protection
– SafeSlot Core+
– Stainless-Steel Back I/O
ASUS Q-Design
– Q-DIMM
– Q-Slot
– Q-LED Core
ASUS Thermal Solution
– Flexible M.2 heatsink
– VRM heatsink design
ASUS EZ DIY
– ProCool
Aura Sync
– Aura RGB headers
– Addressable Gen 2 headers
Bundled Software ASUS Exclusive Software
Armoury Crate
– Aura Sync
– Fan Xpert 4 (with AI Cooling II)
– Power Saving
AI Suite 3
-TurboV EVO
-PC Cleaner
-DIGI+ VRM
ASUS CPU-Z
Norton 360 Deluxe (60 Days Free Trial)
WinRAR
UEFI BIOS
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
Warranty Information
Manufacturing Warranty 3 years
