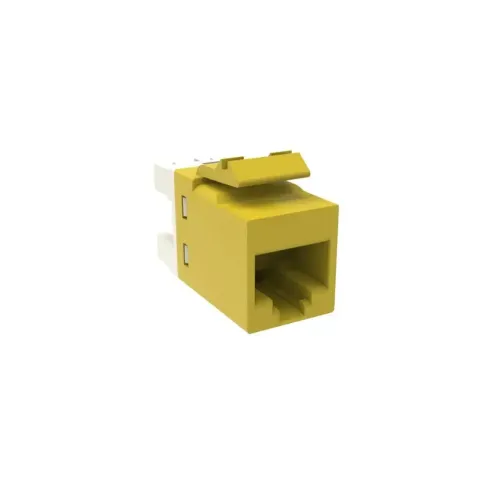

CommScope SL110-6-YL Cat 6 RJ45 Modular Jack

CommScope SL110-6-YL Cat 6 RJ45 Modular Jack

The CommScope SL110-6-YL Cat 6 RJ45 Modular Jack is a versatile connectivity solution designed to support both stranded and solid wires. Meeting the rigorous standards of ISO/IEC 11801 Class E and ANSI/TIA Category 6, this modular jack ensures superior network performance. It features an inverted jack face and a yellow color-coded outlet, making it compatible with SL Series panels and faceplates for streamlined installation.

Features:

This jack supports a minimum of 200 punch-downs using IDC termination and the SL Termination tool, simplifying the termination process. Its robust design complies with IEEE 802.3bt Type 4 (90 W) for remote powering and meets IEC 60512-99-002 standards for unmating under electrical load. Built to endure over 3000 plug-to-jack mating cycles, the SL110-6-YL ensures lasting durability.

The dielectric withstand voltage of 1,500 Vac (conductive surface) and 1,000 Vac (contact-to-contact) further enhances its reliability. The jack supports solid conductor gauges from 24 to 22 AWG and stranded gauges from 26 to 24 AWG, with a maximum cable diameter of 5.8 mm and an insulated conductor diameter of 1.45 mm.

Featuring a minimum insulation resistance of 500 MOhm and a contact resistance of less than 100 mOhm, the SL110-6-YL delivers dependable, high-quality connectivity. Crafted from durable polycarbonate, it includes beryllium copper contacts plated with 1.27 µm of gold, ensuring longevity and optimal performance in demanding network environments.

This jack is an ideal choice for maintaining reliable, high-speed connections in both commercial and industrial applications.

What is the price of CommScope Cat 6 RJ45 Modular Jack in Bangladesh?

Lastly, You can buy this product from Best Computer Hub Ltd. The latest CommScope SL110-6-YL Cat 6 RJ45 Modular Jack  in Bangladesh is 315৳.

Order Online Or Visit your Nearest Best Computer Hub Shop to get yours at lowest price.
