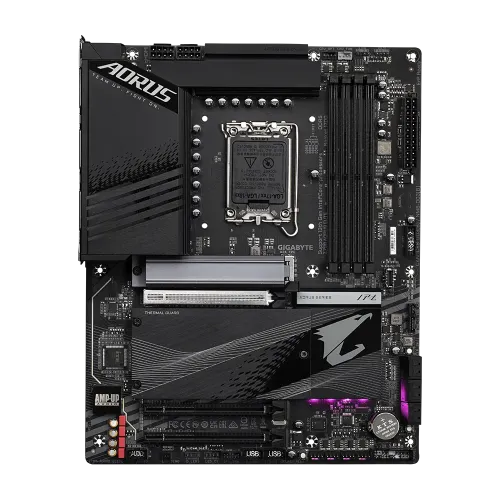

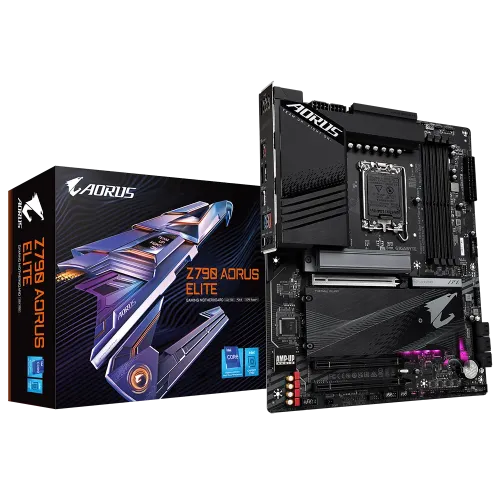

The GIGABYTE Z790 AORUS ELITE ATX Motherboard is designed to support 13th and 12th Gen Intel processors with its LGA 1700 socket, delivering outstanding performance for gaming, content creation, and multitasking. Featuring a robust Twin 16+1+2 Phases Digital VRM Solution, this motherboard ensures efficient and stable power delivery for high-performance computing.
With support for DDR5 memory, the Z790 AORUS ELITE can handle speeds up to 7600 MHz (overclocked), enhancing system responsiveness and multitasking capabilities. It features 4x SMD DIMM slots with XMP 3.0 support, allowing up to 128GB of system memory (32GB per DIMM), making it ideal for heavy workloads and demanding applications.
It also supports PCIe 5.0 SSDs via its type 25110 M.2 slot, ensuring ultra-fast storage solutions for faster boot times and application load speeds.
The advanced cooling system, with an aesthetically designed heatsink, ensures optimal temperatures even during intensive tasks, preventing system crashes and enhancing stability.
This motherboard offers future-proof technology and advanced features for high-end builds, backed by 3 years of warranty. The GIGABYTE AORUS ELITE ATX Motherboard is the ideal choice for anyone seeking a reliable, high-performance platform for gaming or professional use, equipped with cutting-edge technology and excellent thermal management for peak performance.
What is the price of GIGABYTE AORUS ELITE ATX Motherboard in Bangladesh?
Lastly, You can buy this product from Best Computer Hub Ltd. The latest GIGABYTE Z790 AORUS ELITE ATX Motherboard in Bangladesh is 38,500৳.
Order Online Or Visit your Nearest Best Computer Hub Shop to get yours at lowest price.
“heading-row” colspan=”3″>Basic InformationSupported CPULGA1700 socket: Support for the 14th 13th and 12th Generation Intel Core, Pentium Gold and Celeron ProcessorsL3 cache varies with CPUChipsetIntel Z790 Express ChipsetBIOS1 x 256 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0Form FactorATX Form Factor; 30.5cm x 24.4cmAudioRealtek Audio CODECHigh Definition Audio2/4/5.1/7.1-channel* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.Support for S/PDIF OutExpansion SlotsPCICPU:1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.Chipset:2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1, PCIEX4_2)Support for AMD CrossFire technology (PCIEX16 and PCIEX4)MemoryTypeDDR5Slots4 x DIMM socketsSupported MemorySupport for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modulesMaximum Memory128GB (32 GB single DIMM capacity)GraphicsGraphicsIntegrated Graphics Processor-Intel HD Graphics support:
1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
* Support for HDMI 2.0 version and HDCP 2.3.
1 x DisplayPort, supporting a maximum resolution of 4096×2304@60
* Support for DisplayPort 1.2 version and HDCP 2.3Connector & PortsHDMI1 x HDMIDisplay Port (s)1 x DisplayPortUSB (s)Chipset:
1 x USB Type-C port on the back panel, with USB 3.2 Gen 2×2 support
1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header
2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
Chipset+2 USB 2.0 Hubs:
8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)LAN Port (s)Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)Supported StorageCPU:
1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB)
1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4 SSD support) (M2M_SB)
6 x SATA 6Gb/s connectorsRAIDRAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devicesAudio2 x audio jacksInternal I/O Ports1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
1 x water cooling CPU fan header
3 x system fan headers
1 x system fan/water cooling pump header
2 x addressable LED strip headers
2 x RGB LED strip headers
4 x M.2 Socket 3 connectors
6 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
2 x Thunderbolt add-in card connectors
1 x reset button
1 x Q-Flash Plus button
1 x Clear CMOS button
1 x reset jumper
1 x Clear CMOS jumperTPM (Trusted Platform Module )1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)OthersSpecial FeaturesSupport for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Support for Q-Flash
Support for Q-Flash Plus
Support for Smart BackupBundled SoftwareNorton Internet Security (OEM version)
LAN bandwidth management softwareWarranty InformationManufacturing Warranty3 years
