GIGABYTE Z790 AORUS ELITE AX ATX Motherboard

Gigabyte
Availability:

In stock


Short Description

  • Model: Z790 AORUS ELITE AX
  • Supported CPU: 14th Gen, 13th Gen & 12th Gen Processors (LGA1700)
  • Supported RAM: 4 x DDR5 DIMMs, up to 7600(O.C.)
  • Graphics Output: 1 x HDMI, 1 x DisplayPort
  • Features: 2.5GbE LAN & Wi-Fi 6E 802.11ax

39,400৳  43,900৳

In stock

EMI starts at 1,454৳  - View Banks EMI Plans

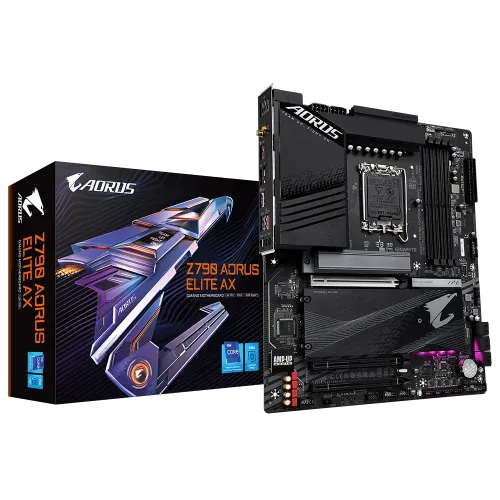

GIGABYTE Z790 AORUS ELITE AX ATX Motherboard

The GIGABYTE Z790 AORUS ELITE AX ATX Motherboard is a top-tier choice for gamers and professionals, supporting 13th and 12th Gen Intel processors with the LGA 1700 socket. Engineered for exceptional performance, it features a Twin 16+1+2 Phases Digital VRM Solution that delivers stable power, optimizing CPU performance for demanding tasks.

This motherboard supports DDR5 memory, with 4x SMD DIMM slots compatible with XMP 3.0 modules. It handles impressive memory speeds up to 7600 MHz (overclocked) and accommodates up to 128GB of system memory, making it ideal for intensive multitasking and gaming applications.

The PCIe 5.0 x16 slot is ready for next-gen PCIe 5.0 graphics cards and storage devices, ensuring ultra-fast data transfers and seamless multitasking. It also features M.2 slots that support PCIe 5.0 SSDs, allowing high-speed storage solutions for faster boot times and application loading. The motherboard’s M.2 socket supports type 25110 PCIe 5.0 SSDs, providing the power and speed needed for advanced computing.

For networking, the Intel 2.5Gb Ethernet ensures faster data transfers, smoother video editing, and enhanced online gaming experiences. The inclusion of Wi-Fi 6E allows for faster wireless connectivity, supporting AR/VR experiences, and lag-free downloading of large files, making this motherboard ideal for modern creative and productivity tasks.

Its advanced cooling system includes aesthetically designed heatsinks, ensuring your system stays cool under heavy loads, preventing overheating and crashes. Backed by a 3-year warranty, the GIGABYTE AORUS ELITE AX offers a reliable, future-ready platform for high-end PC builds, combining power, connectivity, and advanced features.

What is the price of GIGABYTE Z790 AORUS ELITE AX ATX Motherboard in Bangladesh?

Lastly, You can buy this product from Best Computer Hub Ltd. The latest GIGABYTE Z790 AORUS ELITE AX ATX Motherboard in Bangladesh is 39,500৳.

Order Online Or Visit your Nearest Best Computer Hub Shop to get yours at lowest price.

Basic Information
Supported CPU LGA1700 socket: Support for the 14th Gen, 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors
L3 cache varies with CPU
Chipset Intel Z790 Express Chipset
BIOS 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor ATX Form Factor; 30.5cm x 24.4cm
Audio Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Support for S/PDIF Out
Expansion Slots
PCI CPU:
1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1, PCIEX4_2)
Support for AMD CrossFire technology (PCIEX16 and PCIEX4)
Memory
Type DDR5
Slots 4 x DIMM sockets
Supported Memory Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory 128GB (32 GB single DIMM capacity)
Graphics
Graphics Integrated Graphics Processor-Intel HD Graphics support:
1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
* Support for HDMI 2.0 version and HDCP 2.3.
1 x DisplayPort, supporting a maximum resolution of 4096×2304@60
* Support for DisplayPort 1.2 version and HDCP 2.3

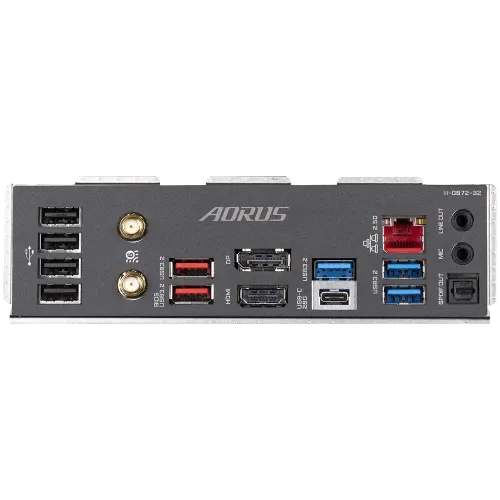

Connector & Ports
HDMI 1 x HDMI
Display Port (s) 1 x DisplayPort
USB (s) Chipset:
1 x USB Type-C port on the back panel, with USB 3.2 Gen 2×2 support
1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header
2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
Chipset+2 USB 2.0 Hubs:
8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
LAN Port (s) Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module Intel Wi-Fi 6E AX211
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.3
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Supported Storage CPU:
1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB)
1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4 SSD support) (M2M_SB)
6 x SATA 6Gb/s connectors
RAID RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Audio 2 x audio jacks
Internal I/O Ports 1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
1 x water cooling CPU fan header
3 x system fan headers
1 x system fan/water cooling pump header
2 x addressable LED strip headers
2 x RGB LED strip headers
4 x M.2 Socket 3 connectors
6 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
2 x Thunderbolt add-in card connectors
1 x reset button
1 x Q-Flash Plus button
1 x Clear CMOS button
1 x reset jumper
1 x Clear CMOS jumper
TPM (Trusted Platform Module ) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
Others
Special Features Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup
Bundled Software Norton Internet Security (OEM version)
LAN bandwidth management software
Warranty Information
Manufacturing Warranty 3 years
