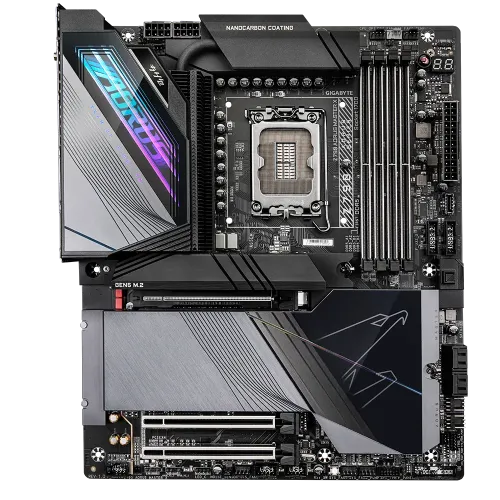

The GIGABYTE Z790 AORUS X E-ATX Motherboard is a top-tier motherboard designed to meet the demands of gamers and PC enthusiasts seeking unparalleled performance.
With its robust 20+1+2 power phase design, the Z790 AORUS MASTER X guarantees optimal power delivery to your CPU, providing stability and performance for overclocking and high workloads. The motherboard offers 4 DIMM slots with XMP 3.0 memory module support, allowing for blazing-fast memory speeds and up to 128GB of DDR5 RAM, perfect for demanding applications and gaming.
One of the highlights is the PCIe 5.0 x16 slot, built to support the newest high-end GPUs with 10X strength, ensuring future-proof performance for advanced graphics cards. The motherboard also includes five M.2 slots, one of which is PCIe 5.0 x4, providing incredibly fast storage options for quick access to games, programs, and data. The M.2 heatsinks feature a screwless design for easy installation, while the quick-release PCIe slot simplifies hardware upgrades.
The VRM Thermal Armor Fins-Array and M.2 Thermal Guard XL ensure effective heat dissipation, keeping your system cool even during intense workloads. For networking, the 10GbE LAN and Wi-Fi 7 with an ultra-high gain antenna deliver lightning-fast internet speeds and reliable connections, perfect for gaming and streaming.
What is the price of GIGABYTE AORUS MASTER X E-ATX Motherboard in Bangladesh?
Lastly, You can buy this product from Best Computer Hub Ltd. The latest GIGABYTE Z790 AORUS MASTER X E-ATX Motherboard in Bangladesh is 77,000৳.
Order Online Or Visit your Nearest Best Computer Hub Shop to get yours at lowest price.
LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors
L3 cache varies with CPU
Chipset
Intel Z790 Express Chipset
BIOS
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor
E-ATX Form Factor; 30.5cm x 26.0cm
Audio
Realtek ALC1220-VB CODEC
* The front panel line out jack supports DSD audio.
ESS ES9118 DAC chip
Support for DTS:X Ultra
High Definition Audio
2/4/5.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 5.1-channel audio, access the audio software for audio settings.
Support for S/PDIF Out
Expansion Slots
PCI
CPU:
1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
* The PCIEX16 slot shares bandwidth with the M2C_CPU connector. The PCIEX16 slot operates at up to x8 mode when a device is installed in the M2C_CPU connector.
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)
1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1)
Support for AMD CrossFire technology (PCIEX16 and PCIEX4)
Memory
Type
DDR5
Slots
4 x DIMM sockets
Supported Memory
Support for DDR5 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory
128GB (32 GB single DIMM capacity)
Graphics
Graphics
Integrated Graphics Processor-Intel® HD Graphics support:
1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz
* Support for DisplayPort 1.2 version and HDCP 2.3

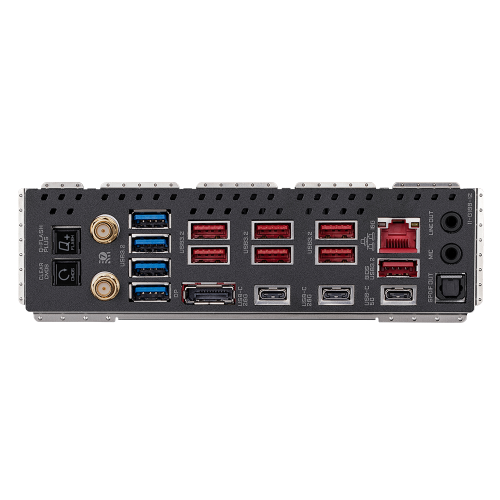

Connector & Ports
Display Port (s)
1 x DisplayPort
USB (s)
Chipset:
3 x USB Type-C ports, with USB 3.2 Gen 2×2 support (2 ports on the back panel, 1 port available through the internal USB header)
Chipset+2 USB 3.2 Gen 2 Hubs:
1 x USB Type-C port on the back panel, with USB 3.2 Gen 1 support
7 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
Chipset+2 USB 3.2 Gen 1 Hubs:
8 x USB 3.2 Gen 1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Chipset+USB 2.0 Hub:
4 x USB 2.0/1.1 ports available through the internal USB headers
Wireless Communication module
Intel Killer Wi-Fi 6E AX1690
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.3
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Supported Storage
CPU:
1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0 x4/x2 SSD support) (M2C_CPU)
1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)
1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
1 x M.2 connector (Socket 3, M key, type 2280/2260 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)
4 x SATA 6Gb/s connectors
RAID
RAID 0, RAID 1, RAID5, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, RAID5, and RAID 10 support for SATA storage devices
Audio
2 x audio jacks
Internal I/O Ports
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
1 x water cooling CPU fan header
4 x system fan headers
4 x system fan/water cooling pump headers
2 x addressable LED strip headers
2 x RGB LED strip headers
5 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2×2 support
2 x USB 3.2 Gen 1 headers
2 x USB 2.0/1.1 headers
1 x noise detection header
2 x Thunderbolt add-in card connectors
1 x power button
1 x reset button
1 x reset jumper
1 x Clear CMOS jumper
2 x temperature sensor headers
Voltage Measurement Points
TPM (Trusted Platform Module )
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
Others
Special Features
Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup
Bundled Software
Norton Internet Security (OEM version)
LAN bandwidth management software
Warranty Information
Manufacturing Warranty
3 years
