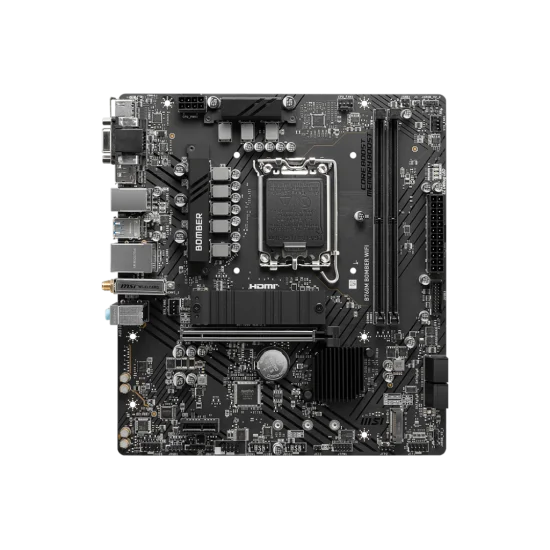

The MSI B760M BOMBER WIFI DDR5 MATX Motherboard is a high-performance motherboard designed to meet the demands of gaming and other intensive applications. Featuring the Intel B760 chipset and LGA 1700 socket, it supports 12th/13th Gen Intel Core processors, Pentium Gold, and Celeron processors, ensuring broad compatibility with a variety . Its form factor, measuring 243.84mm makes it ideal for compact PC builds.
Chipset and Socket: Equipped with the Intel B760 chipset and LGA 1700 socket, this motherboard supports 12th/13th Gen Intel Core, Pentium Gold, and Celeron processors.
Memory: Supports up to 192GB of DDR5 memory across four slots, with overclocking capabilities up to 7000+ MHz (OC), ensuring top-tier performance for memory-intensive tasks.
Networking: Features Intel Wi-Fi 6E for fast, reliable wireless connectivity and a Realtek 2.5Gbps LAN port for high-speed wired internet connections.
Expansion and Ports: Offers two PCI-E x16 slots (supporting x16/x4 configurations) and one PCI-E x1 slot, along with multiple USB ports including USB 2.0, USB 3.2 Gen1, and USB 3.2 Gen2 Type A and Type C
Audio and Display: Equipped with Realtek ALC897 Codec for 7.1-channel high-performance audio and S/PDIF output. Supports high-resolution displays with HDMI 2.1 (up to 4K) and DisplayPort 1.4 (up to 8K).
Additional Features
Dual-Channel Memory Mode: Enhances memory performance for faster data transfer rates.
USB Connectivity: Multiple USB ports including USB 2.0, USB 3.2 Gen1, and USB 3.2 Gen2 for extensive connectivity options.
Internal I/O Ports: Includes multiple internal I/O ports such as power connectors, CPU and system fan connectors, chassis intrusion connectors, and TPM pin header for TPM 2.0 support.
PCIe Compatibility: Supports PCIe 5.0 for the primary x16 slot and PCIe 4.0 for one slot, ensuring future-proof expansion options.
RGB Lighting: Features Addressable V2 RGB LED connectors for customizable lighting.
Warranty: Comes with a three-year warranty, providing peace of mind and assurance of quality.
Performance Review
The MSI B760M BOMBER WIFI DDR5 Motherboard excels in performance, efficiency, and value. Its support for the latest 12th/13th Gen Intel Core processors ensures it can handle high-end computing tasks with ease, making it ideal for gaming enthusiasts and professionals alike.
The motherboard’s DDR5 memory support allows for faster data transfer speeds and improved multitasking capabilities. With a maximum capacity, users can achieve smooth and efficient performance even under heavy workloads.
Connectivity and Value
The inclusion of Intel Wi-Fi 6E and Realtek 2.5Gbps LAN ensures seamless and ultra-fast network connectivity, ideal for lag-free online gaming and data-intensive activities. The multiple USB ports, HDMI 2.1, and DisplayPort 1.4 provide versatile connectivity options for various devices and high-resolution displays, enhancing the overall user experience.
The MSI B760M BOMBER WIFI DDR5 mATX Motherboard is a top-tier choice for those seeking exceptional performance, efficiency, and value. With its support for the latest processors, advanced connectivity options, DDR5 memory, and robust build quality, this motherboard stands out as a reliable foundation for high-performance PC builds. Whether you’re a gamer, content creator, or power user, the MSI B760M BOMBER WIFI
What is the price of MSI B760M BOMBER WIFI DDR5 Motherboard in Bangladesh?
Lastly, You can buy this product from Best Computer Hub Ltd. The latest MSI B760M BOMBER WIFI DDR5 Motherboard Bangladesh is 19500 ৳.
Order Online Or Visit your Nearest Best Computer Hub Shop to get yours at lowest price.
Realtek® ALC897 Codec
7.1-Channel USB High Performance Audio
Supports S/PDIF output
Socket
LGA 1700
MEMORY SPECIFICATION
Memory Type
DDR5
Memory Capacity
192GB
NETWORK & WIRELESS
Wi-Fi
Intel® Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
LAN
Realtek® 2.5Gbps LAN
SUPPORTS
Supported CPU
Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors
Supported Memory
4x DDR5, Maximum Memory Capacity 192GB
Memory Support 7000+(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 7000+ MHz
• 1DPC 2R Max speed up to 6600+ MHz
• 2DPC 1R Max speed up to 6400+ MHz
• 2DPC 2R Max speed up to 5600+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile
CONNECTORS
USB
4x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 3.2 Gen1 Type A (Front)
4x USB 3.2 Gen2 Type A (Rear)
1x USB 3.2 Gen2 Type C (Front)
1x USB 3.2 Gen2x2 Type C (Rear)
HDMI
Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz
1x HDMI
Display Port
Support DP 1.4, maximum resolution of 8K 60Hz
1x DisplayPort
PORTS & SLOTS
Slots
2x PCI-E x16 slot
Supports x16/x4
1x PCI-E x1 slot
PCI_E1 PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 PCIe 3.0 supports up to x4 (From Chipset)
PCI_E3 PCIe 4.0 supports up to x1 (From Chipset)
Internal I/O Ports
1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
5x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x TBT connector (JTBT, supports RTD3)
1x Tuning Controller connector(JDASH)
2x Addressable V2 RGB LED connector (JARGB_V2)
2x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0
2x USB 3.2 Gen1 Type A
1x USB 3.2 Gen2 Type C
