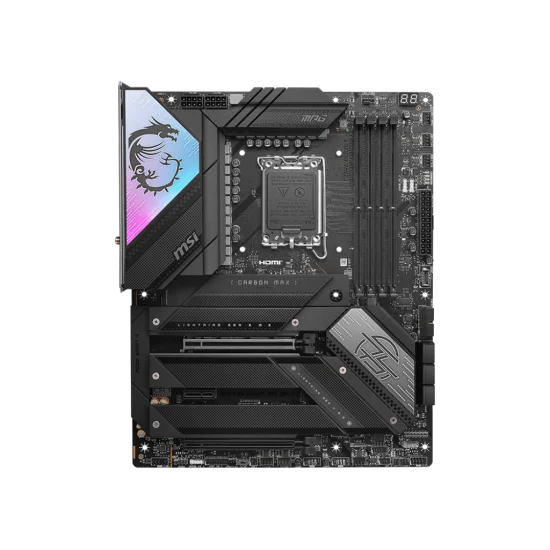

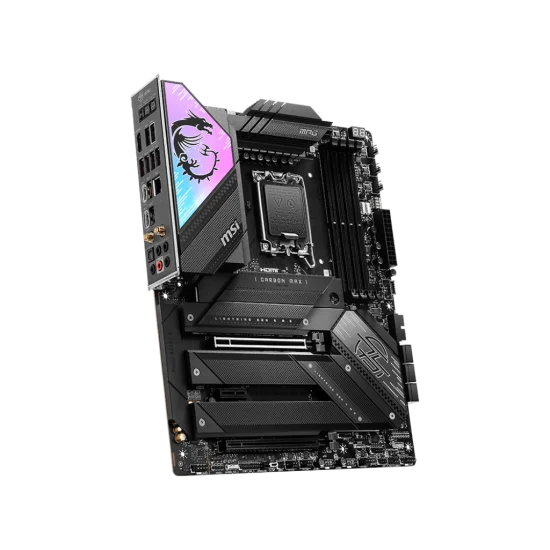

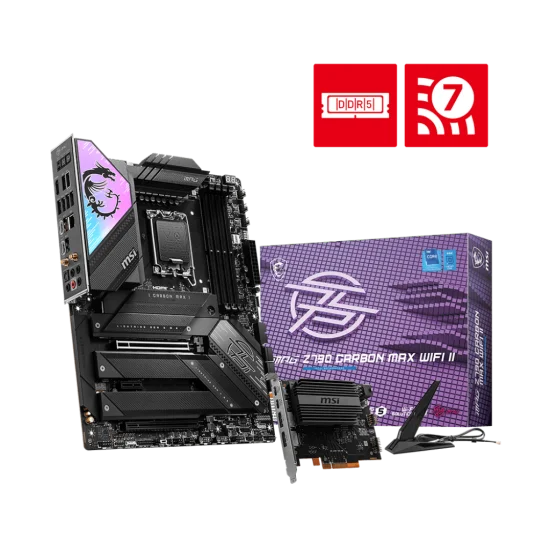

MSI MPG Z790 CARBON MAX WIFI II DDR5 13th Gen ATX Motherboard

Product Details: MSI MPG Z790 CARBON MAX WIFI II DDR5 13th Gen ATX Motherboard

The MSI MPG Z790 CARBON MAX WIFI II DDR5 13th Gen ATX Motherboard is designed to maximize the performance of Intel’s 12th, 13th, and 14th Gen processors. This high-performance motherboard is perfect for gamers and professionals seeking a balance between work and play.

Processor and Memory Support

• Processor Compatibility: Supports Intel Core processors (12th, 13th, and 14th Gen), Pentium Gold, and Celeron processors with the LGA 1700 socket.
• Memory Capacity: Four DDR5 RAM slots supporting up to 192GB, providing exceptional multitasking and rendering efficiency.

Storage and Expansion

• Storage Options: Six SATA III ports and five M.2 PCIe interfaces for extensive storage capabilities.
• Expansion Slots: Includes one PCIe 5.0 x16, one PCIe 4.0 x16 (in x4 mode), and one PCIe 3.0 x1 slot for various graphics and utility cards.

Connectivity

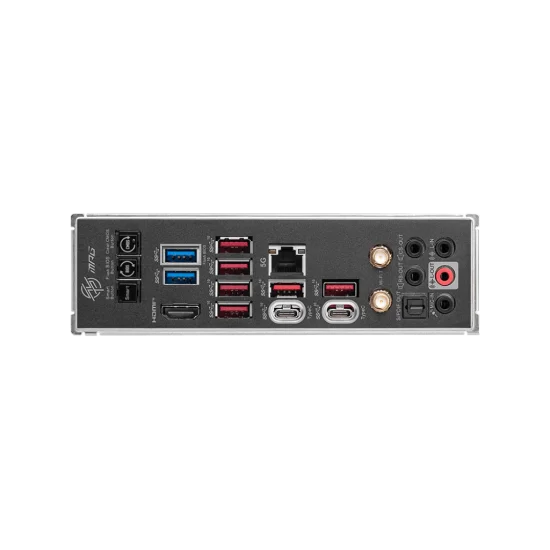

• USB Ports: Multiple USB 2.0, 3.2 Gen 1, Gen 2, and Gen 2×2 Type-A and Type-C ports for high-speed data transfer and peripheral support.
• Wireless Connectivity: Equipped with Bluetooth 5.4 and Wi-Fi 7 (802.11be) for fast and reliable wireless connections.
• Ethernet: Enhanced 2.5 Gigabit Ethernet port for stable wired networking.

Hardware Design and Durability

• Robust Construction: Features an 8-layer PCB with 2 oz thickened copper, dual 8-pin CPU power connectors, PCIe Steel Armor slots, Digital PWM, and a 19+1+1 power layout for superior electrical throughput.
• Protection Features: Includes load-line calibration and overvoltage protection for enhanced reliability.

Cooling Capabilities

• Heat Dissipation: Utilizes extended MOSFET, VRM, PCH heat sinks, and direct-touch heat pipes for efficient thermal management.
• M.2 Shield Frozr: Double-sided thermal solution for M.2 drives to ensure longevity and performance.
• Cooling Support: Compatible with All-in-One (AiO) water cooling systems and features fan headers with DC and PWM mode detection for optimal cooling performance.

Performance Features

• PCIe Steel Armor: Enhanced support for heavy graphics cards.
• Lightning Gen 5: M.2 storage with transfer speeds up to 128 Gb/s.
• Memory Boost Technology: Dedicated SMT welding process and Resizable BAR (Re-Size BAR) for improved multitasking and GPU performance.
• Secure Boot: Ensures device boots using only trusted software for enhanced security.

Enhanced Connectivity

• High-Speed USB: USB 3.2 Gen 1 and Gen 2 Type-A and Type-C ports offer data transfer speeds up to 10 Gb/s.
• Lightning USB 3.2 Gen 2×2: Type-C port with speeds up to 20 Gb/s, DisplayPort video-out, and Power Delivery.

Software and Audio Enhancements

• BIOS Utilities: Includes MSI software like Mystic Light, True Color, User Scenario, Hardware Monitoring, Profile Sharing, Fan Center, and System Diagnosis.
• AIDA64 Extreme: Application for system information, diagnostics, and benchmarks.
• Audio Boost 5: High-definition ALC4080 Audio Processor for immersive sound, high-quality capacitors, S/PDIF support, and a dedicated headphone amplifier with De-Pop Protection.

RGB Lighting

• MSI Mystic Light: Customize RGB lighting with 16.8 million colors and various effects. The Mystic Light Extension pin header allows control of additional RGB strips and peripherals without needing a separate controller.

The MSI MPG Z790 CARBON MAX WIFI II motherboard is an excellent choice for gamers and content creators, offering cutting-edge features and robust performance to enhance your PC build.
