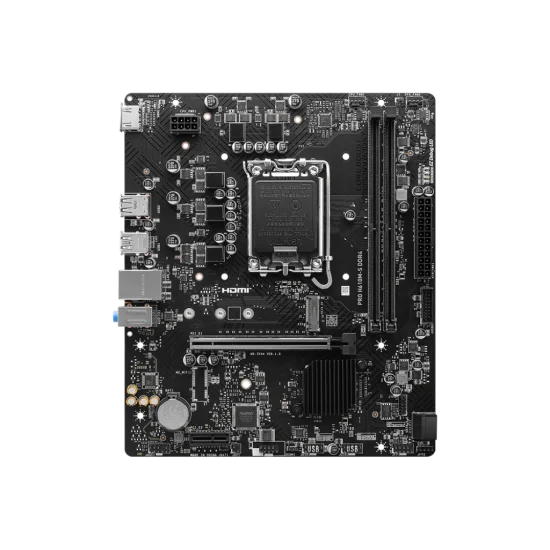

The MSI PRO H610M-S DDR4 Motherboard is a compact yet powerful motherboard designed for professional use. Built with the Intel H610 chipset, it supports 12th Gen Intel Core, Pentium Gold, and Celeron processors, making it an ideal choice for various computing needs.
This motherboard supports DDR4 RAM with dual-channel mode and a maximum capacity of 64GB. It features two memory slots, accommodating memory speeds of 2133, 2666, 2933, and 3200 MHz. For storage, it offers four SATA 6Gb/s ports and one M.2 slot, ensuring flexible storage options and high-speed data transfers.
Extensive Connectivity Options

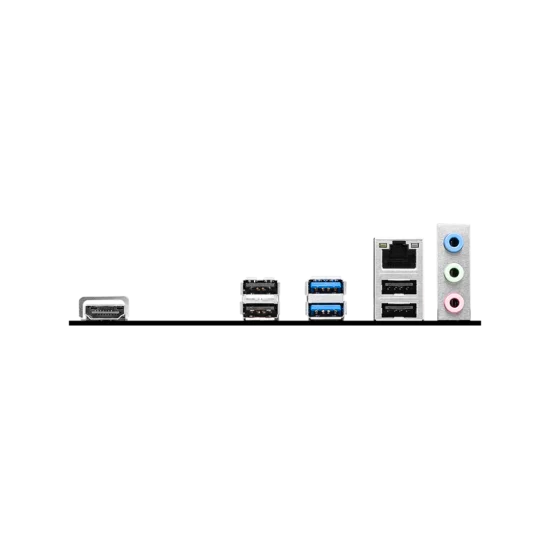

The MSI PRO H610M-S motherboard is equipped with a variety of ports and slots to enhance connectivity:
USB Ports: Four USB 3.2 Gen 1 ports and two USB 2.0 ports on the rear panel.
Display Ports: One HDMI port and one VGA port for multi-display support.
Audio: High-definition 7.1-channel audio powered by the Realtek ALC892/ALC897 codec.
LAN: Intel I219V 1Gbps LAN controller for reliable network connectivity.
Advanced Cooling Solutions
This motherboard includes two fan headers supporting both DC and PWM modes for complete fan control. Adjust fan speeds manually or automatically via BIOS or third-party software to balance performance and noise.
Enhanced Audio Experience
Audio Boost: Provides an enhanced and immersive listening experience with advanced hardware and software features.
Isolated Audio Design with LED Border: Ensures superior audio signal with physically isolated circuitry.
Separated Audio Layers: Delivers better sound quality for left and right audio channels.
De-Pop Protection: Eliminates loud popping sounds when plugging or unplugging devices.
Dedicated Audio Processor: EMI-shielded HD audio processor for enhanced sound quality.
Quality Capacitors: Golden audio capacitors ensure reliable and clear sound output.
Additional Features for Maximum Efficiency
Core Boost: Combines layout design and optimization for faster, undistorted current delivery to the CPU.
EZ Debug LED: Onboard LEDs for quick and easy system diagnostics.
X-Boost: Optimizes USB storage device performance via MSI’s software.
Command Center: Software for tuning settings, maximizing performance, and optimizing cooling features.
Live Update: Automatically downloads and installs the latest drivers, BIOS, and software updates.
RAM Disk: Creates a virtual drive using system memory for fast software and app loading.
The MSI PRO H610M-S DDR4 Motherboard delivers impressive performance, efficiency, and value, making it a compelling choice for users seeking a reliable and feature-rich motherboard. Designed with the Intel H610 chipset and a compact mATX form factor, it strikes a balance between power and space efficiency.
Key Features:
Chipset: Intel H610
Processor Compatibility: 12th Gen Intel Core, Pentium Gold, and Celeron processors
Memory: Up to 64GB DDR4, dual-channel mode, memory speeds of 2133/2666/2933/3200 MHz
Storage: Four SATA 6Gb/s ports and one M.2 slot
Connectivity: HDMI, VGA, USB 3.2 Gen 1, USB 2.0, Realtek ALC892/ALC897 audio codec, Intel I219V 1Gbps LAN
Cooling: Two fan headers supporting DC and PWM modes
Tags:
MSI PRO H610M-S DDR4 Motherboard, Intel H610 chipset, 12th Gen Intel Core, Pentium Gold, Celeron processors, DDR4 RAM, SATA 6Gb/s, M.2 slot, USB 3.2, HDMI, VGA, Realtek ALC892, Core Boost, EZ Debug LED, X-Boost, Command Center, Live Update, RAM Disk, Steel Armor.
What is the price of MSI PRO H610M-S DDR4 Motherboard in Bangladesh?
Lastly, You can buy this product from Best Computer Hub Ltd. The latest MSI PRO H610M-S DDR4 Motherboard Bangladesh is 9,650৳.
Order Online Or Visit your Nearest Best Computer Hub Shop to get yours at lowest price.
4x SATA 6Gb/s ports
1x M.2 slot (Key M, from chipset)
Supports up to PCIe 3.0 x4
Supports up to SATA 6Gb/s
Supports 2242/ 2260/ 2280 storage devices
Supports Intel Smart Response Technology for Intel Core processors
CONNECTORS
LAN
1x Intel I219V 1Gbps LAN controller
USB
Intel H610 Chipset:
4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB
connector) 6x USB 2.0 ports (4 Type-A ports on the back panel(hub-GL850G), 2 ports available through the internal USB 2.0
connector)
HDMI
1
TPM (Trusted Platform Module )
1x TPM module connector
VGA
1
PORTS & SLOTS
Slots
M.2 SLOT 1
Ports
USB 3.2 Ports (Front) 2(Gen 1, Type A)
USB 3.2 Ports (Rear) 2(Gen 1, Type A)
USB 2.0 Ports (Front) 2
USB 2.0 Ports (Rear) 4
Audio Ports (REAR) Realtek ALC892/ ALC897 Codec
Internal I/O Ports
POWER CONNECTORS:
1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
FAN CONNECTORS:
1x 4-pin CPU fan connector
1x 4-pin system fan connector
SYSTEM CONNECTORS:
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
Expansion Slots
PCI
1x PCIe x16 slot (From CPU)
Supports up to PCIe 4.0 x16
1x PCIe x1 slot
Supports PCIe 3.0 x1
1x M.2 slot with E-key for PCIe WiFi module only (M2_ WIFI1)
PHYSICAL SPECIFICATION
Dimensions (W x D x H)
304*243mm
WARRANTY INFORMATION
Warranty
03 year
