R&M R795138 Cat-6 U/UTP 305 Meter Network Cable

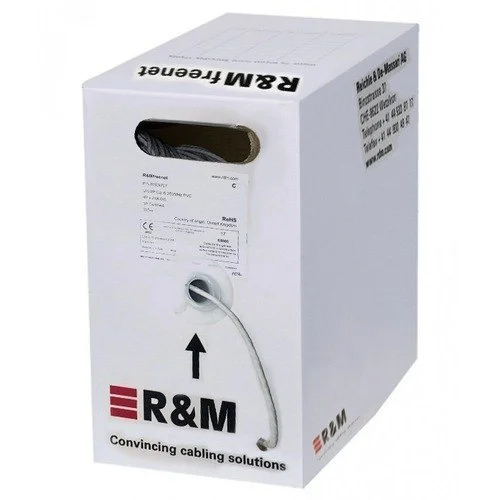

R&M Cat 6 U/UTP Cable Box

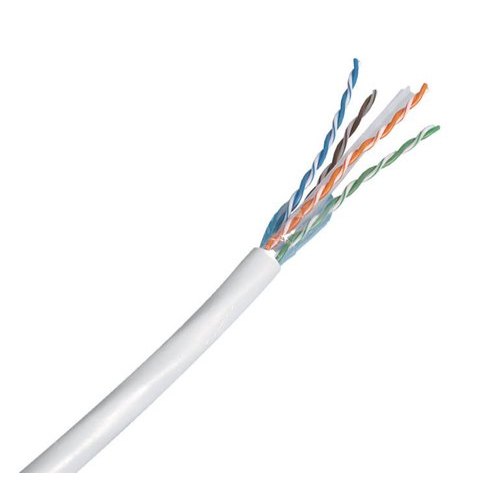

The R&M Cat 6 U/UTP Cable Box delivers top-notch performance for your networking needs. It features a bare solid copper conductor with an HDPE insulation and an overall diameter of Ø 0.92±0.02 mm. The cable’s structure includes twisted pairs and a cross separator, enclosed in a durable PVC sheath, colored gray (RAL 7035), with a nominal sheath thickness of 0.50mm.

Key Specifications

• Conductor: Bare solid copper
• Insulation: HDPE
• Diameter: Overall Ø 0.92±0.02 mm
• Twisting: 2 wires per pair, 4 pairs to the core
• Sheath Material: PVC, gray RAL 7035
• Sheath Thickness: 0.50mm nominal

Standards Compliance

• ISO/IEC 11801 2nd Edition
• EN 50173-1
• ANSI/TIA-568-C.2
• IEC 61156-5 2nd Edition
• IEC 61156-7
• EN 50288-6-1

Cable Designation

• Category: U/UTP Cat.6 250MHz
• Outer Diameter: 5.8±0.3mm
• Weight: 13.0kg nominal per 305m
• Pulling Pressure: 11Kg nominal
• Tensile Strength: > 16.5N/mm²
• Segregation Class: B

Installation and Operation of R&M Cat 6 UTP Cable

• Bending Radius: 25mm during operation (without load), ≥ 50mm during installation (with load)
• Temperature Range: -20°C to +60°C during operation, 0°C to +50°C during installation

Electrical Properties (at 20°C ± 5°C)

• Conductor Resistance: ≤ 9.38 Ω / 100m
• Resistance Unbalance: ≤ 2%
• Test Voltage: 1000 V DC, 1 minute, core/core
• Insulation Resistance: ≥ 5000 MΩ km; 500 V
• Capacitance: 44 pF/m max
• Capacitance Unbalance: 1500 pF/km
• Impedance: 100 ± 15 Ω at 100 MHz
• Nominal Velocity of Propagation: Approx. 69%
• Propagation Delay: ≤ 536 ns / 100m at 1 MHz
• Delay Skew: ≤ 45 ns / 100m
• Coupling Attenuation: 40 dB

Benefits of  R&M Cat 6 UTP Cable

• High-Quality Construction: Ensures durability and reliable performance with solid copper conductors and HDPE insulation.
• Standard Compliance: Meets various international standards for assured quality and compatibility.
• Enhanced Performance: Provides excellent electrical properties and minimal signal interference.
• Flexible Installation: Suitable for various installation environments with its robust design and operational temperature range.
• Optimal Data Transfer: Designed for high-speed data transmission with low resistance and minimal delay.

What is the price of  R&M Cat 6 Cable in Bangladesh?

Lastly, You can buy this product from Best Computer Hub Ltd. The latest price of  R&M Cat 6 Cable in Bangladesh is 14,700৳. Order Online Or Visit your Nearest Best Computer Hub Shop to get yours at lowest price.
